Introduction
Product Description:

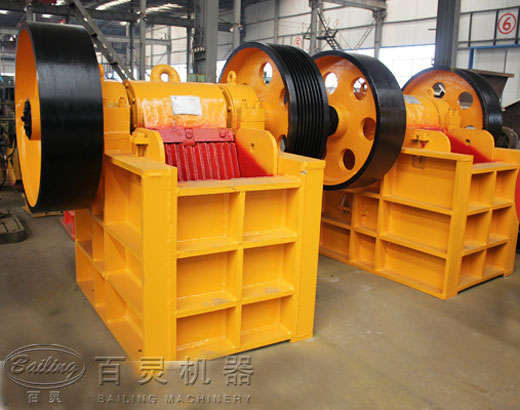

The motor drives belt and belt wheel, the eccentric shaft causes the movable jaw to move down and up, forward and backward, the angle between toggle plate and movable jaw becomes bigger when the movable jaw moves up, so that the movable jaw moves toward the fixed jaw, and the materials are pressed, crushed, or cut, as a result, the aim of crushing is accomplished.
Features:
1. The deep crushing cavity increases the feeding capacity and output capacity;
2. High ratio of crushing, homogeneous final product size;
3. Adjust the discharge opening through gasket, more convenient, it can meet different customers’ requirement
4. Lubrication system is safe and reliable, easy to change the spare parts;
5. Simple structure, easy maintenance, consumption cost is lower;
6. Energy-saving, for one set saving about 15%-30%;
7. Little noise and dust.
The motor drives belt and belt wheel, the eccentric shaft causes the movable jaw to move down and up, forward and backward, the angle between toggle plate and movable jaw becomes bigger when the movable jaw moves up, so that the movable jaw moves toward the fixed jaw, and the materials are pressed, crushed, or cut, as a result, the aim of crushing is accomplished.
Features:
1. The deep crushing cavity increases the feeding capacity and output capacity;
2. High ratio of crushing, homogeneous final product size;
3. Adjust the discharge opening through gasket, more convenient, it can meet different customers’ requirement
4. Lubrication system is safe and reliable, easy to change the spare parts;
5. Simple structure, easy maintenance, consumption cost is lower;
6. Energy-saving, for one set saving about 15%-30%;
7. Little noise and dust.
Parameter
| Model | Max. Feeding Size(mm) | Discharge Size(mm) | Capacity(t/h) | Motor Power(kW) | Overall Dimensions(mm) | Weight(t) |
| PE150×250 | 125 | 10-14 | 1-3 | 5.5 | 896×745×935 | 1.5 |
| PE250×400 | 210 | 20-50 | 5-20 | 15 | 1430×1310×1340 | 2.5 |
| PE400×600 | 350 | 40-100 | 15-50 | 30 | 1700×1732×1653 | 6.8 |
| PE500×750 | 425 | 50-100 | 30-85 | 55 | 2035×1921×2000 | 12.5 |
| PE600×900 | 480 | 65-160 | 45-110 | 55-75 | 2290×2206×2370 | 18.5 |
| PE750×1060 | 630 | 80-140 | 105-195 | 90-110 | 2655×2302×3110 | 29.5 |
| PE900×1200 | 750 | 95-165 | 90-220 | 110-132 | 3800×3166×3045 | 56 |
| PE1000×1200 | 850 | 195-265 | 315-550 | 110 | 3335×3182×3025 | 57 |
| PE1200×1500 | 1000 | 150-300 | 400-800 | 160 | 4200×3750×3820 | 100.9 |
| PEX150×750 | 120 | 18-48 | 5-16 | 15 | 1200×1500×1200 | 3.8 |
| PEX250×750 | 210 | 15-60 | 15-30 | 22-30 | 1667×1545×1020 | 5 |
| PEX250×1000 | 210 | 15-60 | 15-50 | 30-37 | 1550×1964×1380 | 7 |
| PEX250×1200 | 210 | 15-60 | 20-60 | 37-45 | 2192×1900×1950 | 9.8 |
| PEX400×900 | 350 | 25-80 | 30-120 | 75 | 2200×2000×2000 | 13 |
| PEX300×1300 | 250 | 20-90 | 16-65 | 55 | 1930×2400×1747 | 11.6 |
