Introduction
Production Description:

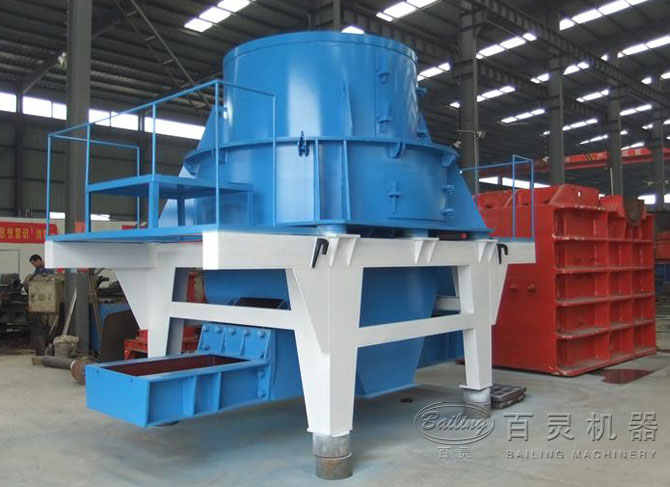

PCL impact sand making machine (vertical shaft impact crusher) widely used in metal and nonmetal ores, cement, refractories, abrasives, glass raw materials, construction aggregate, artificial sand, and various metallurgical slag fine crushing and coarse grinding operations, particularly in the hard, extra hard and abrasive materials such as silicon carbide, silicon carbide, sintered bauxite, magnesia, etc., it is more advantageous than other types crushers. And equipped with hydraulic protection jaw crusher, is can handle a variety of metallurgical slag, Particularly appropriate for construction and gravel roads.
Features:
1. Simple structure and low operating cost;
2. High crushing ratio with low consumption;
3. impeller wears well, easy maintenance;
4. Fine crushing, coarse grinding function;
5. Little affected by the moisture content of materials, Maximal water content up to about 8% ;
6. more suitable for crushing hard, special hard materials;
7.Cubic shape of final products, high density of piling up and low iron pollution;
8. Low working noise (lower than 75 decibel) and light dust pollution
PCL impact sand making machine (vertical shaft impact crusher) widely used in metal and nonmetal ores, cement, refractories, abrasives, glass raw materials, construction aggregate, artificial sand, and various metallurgical slag fine crushing and coarse grinding operations, particularly in the hard, extra hard and abrasive materials such as silicon carbide, silicon carbide, sintered bauxite, magnesia, etc., it is more advantageous than other types crushers. And equipped with hydraulic protection jaw crusher, is can handle a variety of metallurgical slag, Particularly appropriate for construction and gravel roads.
Features:
1. Simple structure and low operating cost;
2. High crushing ratio with low consumption;
3. impeller wears well, easy maintenance;
4. Fine crushing, coarse grinding function;
5. Little affected by the moisture content of materials, Maximal water content up to about 8% ;
6. more suitable for crushing hard, special hard materials;
7.Cubic shape of final products, high density of piling up and low iron pollution;
8. Low working noise (lower than 75 decibel) and light dust pollution
Parameter
|
Items Model |
Max Feeder Opening (mm) |
Motor Power (KW) |
Impeller Speed (r/min) |
Quantities (t/h) |
Overall Dimensions (mm) |
Weight (T) |
| PCL-600 | 30 | 20-35 | 2000-2470 | 20-35 | 2500×1600×2260 | 5.6 |
| PCL-750 | 35 | 74-110 | 1500-2045 | 35-55 | 2780×1800×2700 | 7.3 |
| PCL-900 | 40 | 110-180 | 1200-1685 | 55-100 | 3900×2160×2770 | 12.1 |
| PCL-1050 | 45 | 180-264 | 1000-1430 | 90-160 | 4660×2450×3660 | 16.9 |
| PCL-1250 | 45 | 264-370 | 850-1300 | 160-230 | 5600×2950×4000 | 22 |
| PCL-1350 | 50 | 320-440 | 800-1185 | 200-260 | 5340×2940×3650 | 26 |
