Introduction
Production Description:

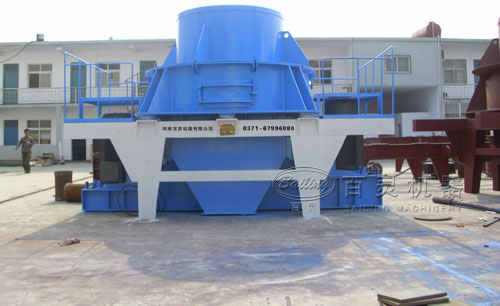

It’s the high—efficiency sand making equipment with advanced world levels in our country. It is the preferred equipment for artificial sand making and stone reshaping industry.It specially provides the best material for the highway,railway,high-rise buildings,municipal works,hydro-electric dam and concrete mixing station. It ranks first among similar products with its excellent cost performance and reliability.
Features:
1. Simple structure and low operating cost;
2. High crushing ratio with low consumption;
3. Function of fine crushing and crude grinding;
4. Slightly influenced by moisture content of material, and the max moisture content is about 8%;
5. More suitable for crushing mid-hardness and high hardness materials;
6. Cubic shape of final products, high density of piling up and low iron pollution;
7. More wearable and easier maintenance;
8. Low working noise (lower than 75 decibel) and light dust pollution
It’s the high—efficiency sand making equipment with advanced world levels in our country. It is the preferred equipment for artificial sand making and stone reshaping industry.It specially provides the best material for the highway,railway,high-rise buildings,municipal works,hydro-electric dam and concrete mixing station. It ranks first among similar products with its excellent cost performance and reliability.
Features:
1. Simple structure and low operating cost;
2. High crushing ratio with low consumption;
3. Function of fine crushing and crude grinding;
4. Slightly influenced by moisture content of material, and the max moisture content is about 8%;
5. More suitable for crushing mid-hardness and high hardness materials;
6. Cubic shape of final products, high density of piling up and low iron pollution;
7. More wearable and easier maintenance;
8. Low working noise (lower than 75 decibel) and light dust pollution
Parameter
| odel | Capacity (t/h) |
Max Feed Size (mm) |
Rotation speed (r/min) |
Power for double motor (kW) |
Overall Dimension L×W×H (mm) |
Weight (t) |
||
|
Center and Ring feeding |
Center feeding |
Soft material |
Hard material |
|||||
| VSI7611 | 120-190 | 65-95 | 35 | 30 | 1700-1900 | 55×2 | 3700×2150×2100 | 11.8 |
| VSI8518 | 200-260 | 100-130 | 40 | 35 | 1520-1700 | 90×2 | 4140×2280×2425 | 14.5 |
| VSI9526 | 300-380 | 150-190 | 45 | 40 | 1360-1500 | 132×2 | 4560×2447×2778 | 17.8 |
| VSI1140 | 450-520 | 225-260 | 50 | 45 | 1180-1310 | 200×2 | 5000×2700×3300 | 25.6 |
