Introduction
Product Description:

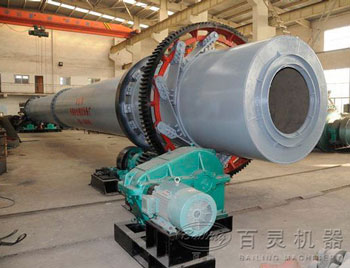

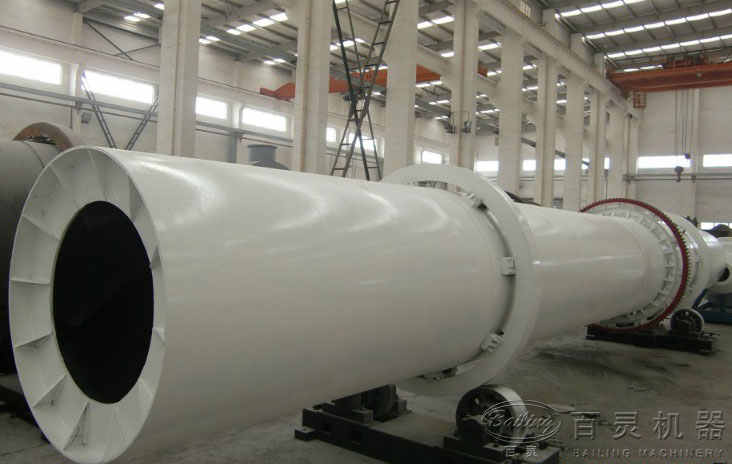

Sludge drying machine can be widely applied in activated sludge drying, petrochemical, printing and dyeing, tanning sludge drying, sludge drying electroplating sludge drying, municipal sludge drying, biological fermentation residue and other kinds of sludge and residue, high moisture material drying.
Because the different materials have high requirement on the dryer texture , the Bailing dryer’s lifter can choose different texture depend on the the different material properties, such as stainless steel, high manganese steel etc.! Drying machine roller made of 45Cr material and roller adopt 35CrMo material .It is wear-resistant practical! To the greatest extent to reduce the degree of replacement of wearing parts of the equipment, it brings great benefits to customers later equipment repair and production operation!
Sludge drying machine can be widely applied in activated sludge drying, petrochemical, printing and dyeing, tanning sludge drying, sludge drying electroplating sludge drying, municipal sludge drying, biological fermentation residue and other kinds of sludge and residue, high moisture material drying.
Because the different materials have high requirement on the dryer texture , the Bailing dryer’s lifter can choose different texture depend on the the different material properties, such as stainless steel, high manganese steel etc.! Drying machine roller made of 45Cr material and roller adopt 35CrMo material .It is wear-resistant practical! To the greatest extent to reduce the degree of replacement of wearing parts of the equipment, it brings great benefits to customers later equipment repair and production operation!
Features:
1, sludge drying machine adopts automatic control device, only need to adjust the time through the control panel, can automatically complete the whole drying process, which greatly improves the efficiency of drying.
2, the sludge drying machine drum are made of quality stainless steel, beautiful and smooth cylinder, durable.
3, using triangulation tape drive, smooth running, low noise, safe and reliable.
4, high efficient recycling exhaust and an inner cage rotation to ensure rapid drying uniformity, large diameter feeding port is convenient for materials out of.
5, the high quality of heat exchanger and timing control rotating, further improve the quality of drying and reeling.
6, efficient radiator, and with reasonable cited duct, so that the hot air direct contact with sludge, greatly improves the drying efficiency, while saving energy.
2, the sludge drying machine drum are made of quality stainless steel, beautiful and smooth cylinder, durable.
3, using triangulation tape drive, smooth running, low noise, safe and reliable.
4, high efficient recycling exhaust and an inner cage rotation to ensure rapid drying uniformity, large diameter feeding port is convenient for materials out of.
5, the high quality of heat exchanger and timing control rotating, further improve the quality of drying and reeling.
6, efficient radiator, and with reasonable cited duct, so that the hot air direct contact with sludge, greatly improves the drying efficiency, while saving energy.
Parameter
|
model(m)
(shell diameter*shell length) |
Shell cubage
(m³) |
Capacity (t/h) |
Gradient
（°） |
Highest inlet air
temperature （℃） |
Main motor
power （kw) |
Weight
（t） |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
3～5
|
700～800
|
7.5
|
9
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
3～5
|
700～800
|
7.5
|
11
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
3～5
|
700～800
|
15
|
18.5
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
3～5
|
700～800
|
15
|
19.7
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
3～5
|
700～800
|
15
|
20.5
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
3～5
|
700～800
|
18.5
|
21.5
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
3～5
|
700～800
|
18.5
|
23
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
3～5
|
700～800
|
22
|
33.5
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
3～5
|
700～800
|
22
|
36
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
3～5
|
700～800
|
22
|
38
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
3～5
|
700～800
|
37
|
45
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
3～5
|
700～800
|
37
|
49
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
3～5
|
700～800
|
45
|
54
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
3～5
|
700～800
|
45
|
58
|
|
Φ2.6×24
|
127.4
|
27.4～34.0
|
3～5
|
700～800
|
55
|
73
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
3～5
|
700～800
|
75
|
85
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
3～5
|
700～800
|
75
|
95
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
3～5
|
700～800
|
90
|
110
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
3～5
|
700～800
|
160
|
135
|
